Hong Kong pollution data

Pollution is a major concern in Hong Kong. How bad is it? Compared to say 5 years ago? 10 years ago? It is surprisingly difficult to find simple long term charts, despite pollution data being seemingly readily available in a few places on the web.

Part 1 we collected some data from a HK Government website.

Part 2 we calculated the AQI manually.

In this let’s try to explore the components of AQI to see where the pollution in HK comes from, if there is any obvious seasonality in the data, if holidays have any impact and what times of the day are the worst.

Data downloaded from HK EPD, see Part 1.

In order to mix it up a little, we use data for CENTRAL / Western district here. It should be less noisy as Causeway Bay data as it is not a roadside station.

Remarks:

CO = Carbon Monoxide
FSP = Fine Suspended Particulates, PM2.5
NO2 = Nitrogen Dioxide
NOX = Nitrogen Oxides
O3 = Ozone
RSP = Respirable Suspended Particulates, PM10
SO2 = Sulphur Dioxide

Initial imports

import pandas as pd
import os

Let’s get the data from our previously saved CSV (see previous posts)

folder = 'central-western'
df = pd.read_csv(os.path.join(os.getcwd(),folder,'aqi_hourly_full.csv'))
df.drop(df.columns[[0]], axis=1, inplace=True)
df.DATE = pd.to_datetime(df.DATE, format="%Y-%m-%d")
df.HOUR = pd.to_timedelta(df.HOUR, unit='h')
df['TIMESTAMP'] = df.DATE + df.HOUR
df.iloc[:,2:10] = df.iloc[:,2:10].apply(pd.to_numeric, errors='coerce')
dailyaqi = df.iloc[:,[0,9]].groupby(['DATE']).median().copy().T.squeeze()
hourlyaqi = df.loc[:,['TIMESTAMP','AQI']].groupby(['TIMESTAMP']).median().copy().T.squeeze()

and let’s print a few plots to start

dailyaqi.plot(figsize=(16,6))

png

There seems to be a change in regime around 2011, 2012.

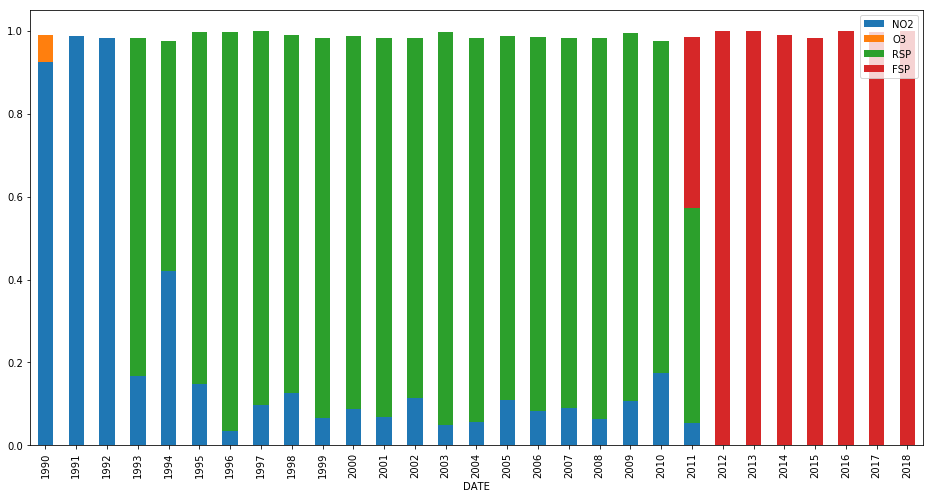

Let’s try to pin down if this is due to a change in underlying AQI component.

aqi_origins = df.groupby(['DATE']).median().copy()
aqi_origins['AQI'] = aqi_origins.iloc[:,:6].max(numeric_only=True, axis = 1)
aqi_origins['AQISource'] = aqi_origins.loc[:,['FSP','NO2','O3','RSP','SO2','CO_8h','O3_8h']].eq(aqi_origins['AQI'], axis=0).apply(lambda x: ','.join(aqi_origins.columns[0:7][x==x.max()]),axis=1)
aqi_origins.loc[aqi_origins['AQI'].isnull(),'AQISource'] = pd.np.nan
aqi_origins = aqi_origins.groupby(aqi_origins.index.year).apply(lambda x: x['AQISource'].value_counts(normalize=True))
# let's filter out small contributors to make the chart clearer
mask = aqi_origins>0.025
aqi_origins = aqi_origins.loc[mask]
aqi_origins = aqi_origins.unstack().fillna(0)
aqi_origins.plot.bar(stacked=True,figsize=(16,8))

png

Indeed, before 1993 the main driver of AQI was NO2.

Between 1994 and 2011, it was PM10.

And since then, clearly PM2.5

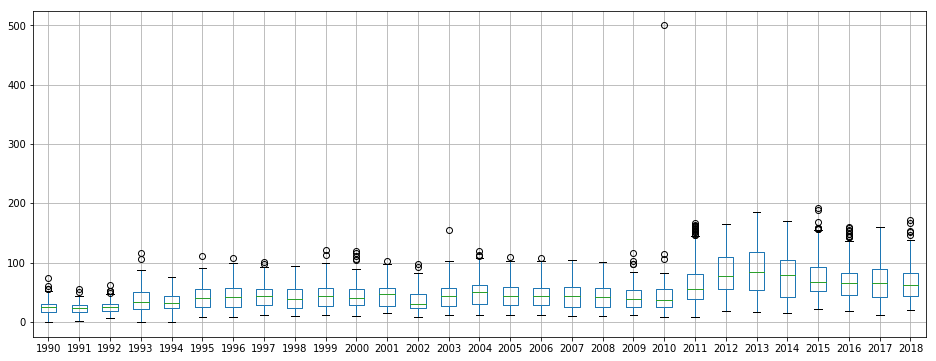

Let’s try to see box plots now because daily data for 20 years is not ideal.

groups = dailyaqi.groupby(dailyaqi.index.year)
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = [str(x) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

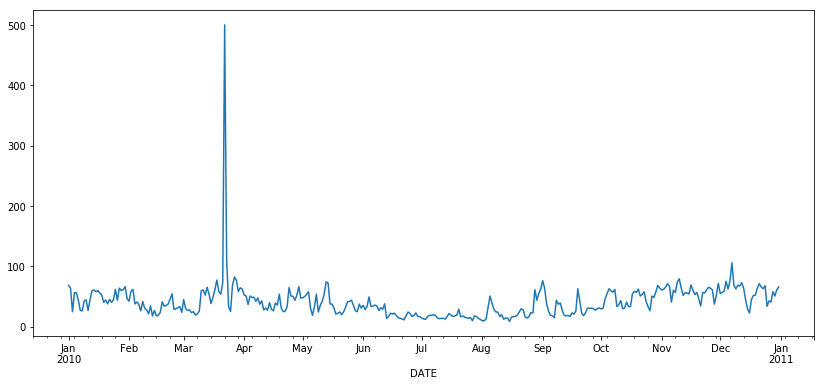

Let’s zoom in on 2010 where it looks like we have a large outlier.

I thought it was a mistake at first, but then I found this BBC News article online

dailyaqi['2010'].plot(figsize=(14,6))

png

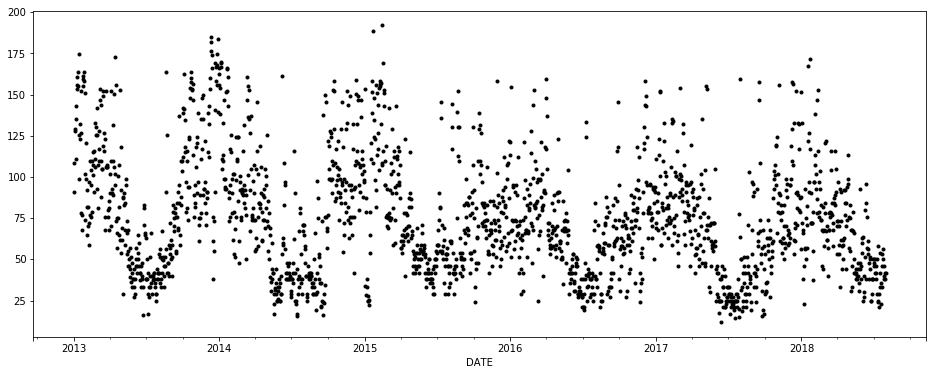

Enough with the old stuff, let’s look at the last 5 years

dailyaqi['2013':].plot(style='k.',figsize=(16,6))

png

Is there seasonality? Let’s plot the last 5 years to 2018 on a stacked basis

groups = dailyaqi['2013':].groupby(pd.Grouper(freq='A'))
years = pd.DataFrame()
for name, group in groups:
    if group.values.shape[0] == 366:
        years[name.year] = group.drop([pd.to_datetime(str(name.year)+'/02/29', format='%Y/%m/%d')]).values
    elif group.values.shape[0] < 365:
        print('Year %s does not have enough data (%s points only), filling with zeros' % (str(name.year),str(group.values.shape[0])))
        years[name.year] = group.append(pd.Series([0] * (365-group.shape[0])),ignore_index=True).values
    elif group.values.shape[0] == 365:
        years[name.year] = group.values
    else:
        print('Year %s has too many data points (%s points!). Something is wrong with the data.' % (str(name.year),str(group.values.shape[0])))
        raise
years.plot(subplots=True, legend=False, figsize=(16,9))

Year 2018 does not have enough data (212 points only), filling with zeros

png

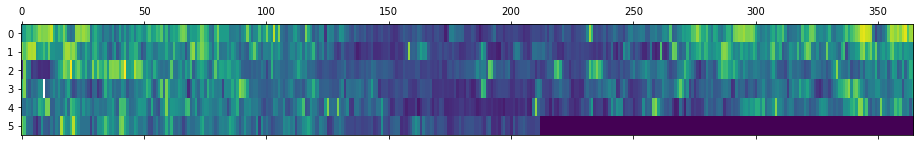

Not obvious, maybe with a heatmap we will see better?

from matplotlib import pyplot
groups = dailyaqi['2013':].groupby(pd.Grouper(freq='A'))
years = pd.DataFrame()
for name, group in groups:
    if group.values.shape[0] == 366:
        years[name.year] = group.drop([pd.to_datetime(str(name.year)+'/02/29', format='%Y/%m/%d')]).values
    elif name.year == 2018:
        years[name.year] = group.append(pd.Series([0] * (365-group.shape[0])),ignore_index=True).values
    elif group.values.shape[0] == 365:
        years[name.year] = group.values
    else:
        raise
years = years.T
pyplot.matshow(years, interpolation=None, aspect='auto')

png

So it looks like weaker numbers around the middle of the year, higher pollution around year end. Let’s plot weekly boxes for last two years:

sliceofdata = dailyaqi['2016':]
groups = sliceofdata.groupby(sliceofdata.index.weekofyear)
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = [str(x) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

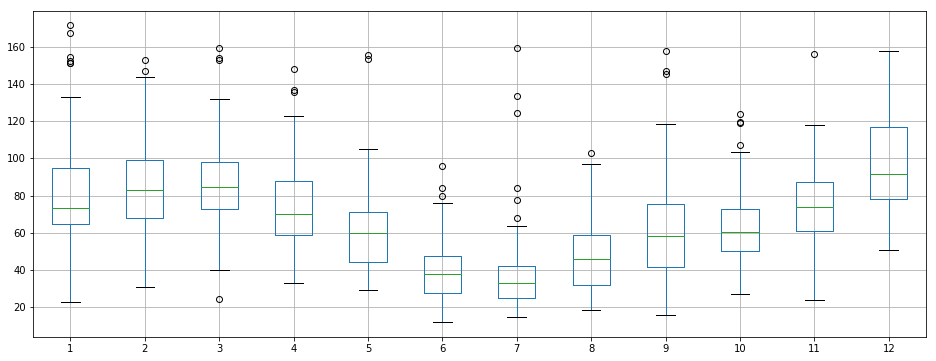

And now by month

sliceofdata = dailyaqi['2016':]
groups = sliceofdata.groupby(sliceofdata.index.month)
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = [str(x) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

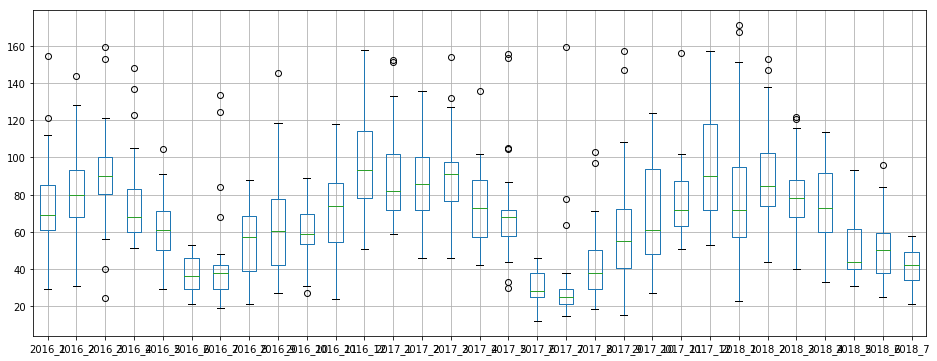

Let’s display monthly data from 2016:

sliceofdata = dailyaqi['2016':]
groups = sliceofdata.groupby([sliceofdata.index.year,sliceofdata.index.month])
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = ['_'.join([str(y) for y in x]) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

Bizarrely, December is when pollution seems to be the highest.

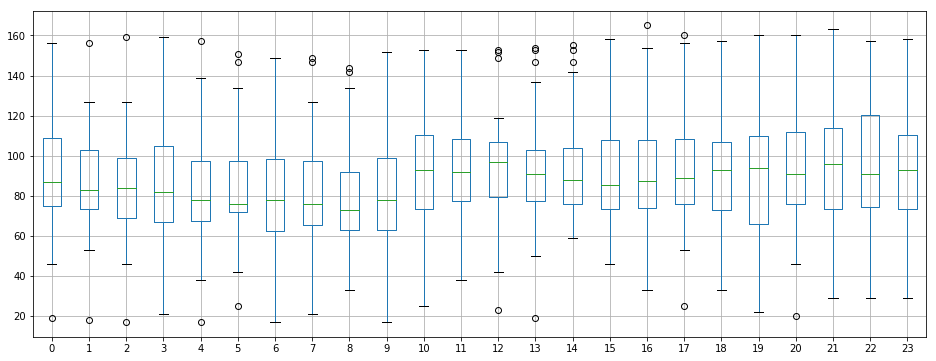

Now let’s look at a particular month and see if there is a pattern during the day? Let’s select Feb 2018, when median pollution was fairly high

sliceofdata = hourlyaqi['2018-02']
groups = sliceofdata.groupby(sliceofdata.index.hour)
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = [str(x) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

I don’t see any pattern here.

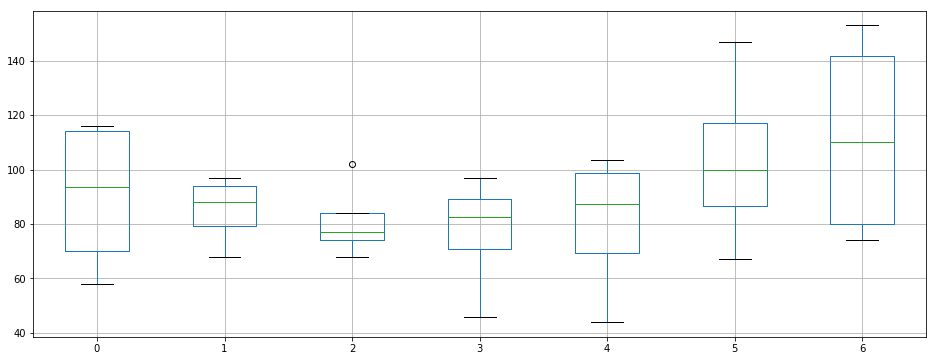

Let’s have a look at days of the week.

sliceofdata = dailyaqi['2018-02']
groups = sliceofdata.groupby(sliceofdata.index.dayofweek)
groupstack = pd.concat([pd.DataFrame(x[1].values) for x in groups], axis=1)
groupstack = pd.DataFrame(groupstack)
groupstack.columns = [str(x) for x in groups.groups.keys()]
groupstack.boxplot(figsize=(16,6))

png

No clear pattern here either
